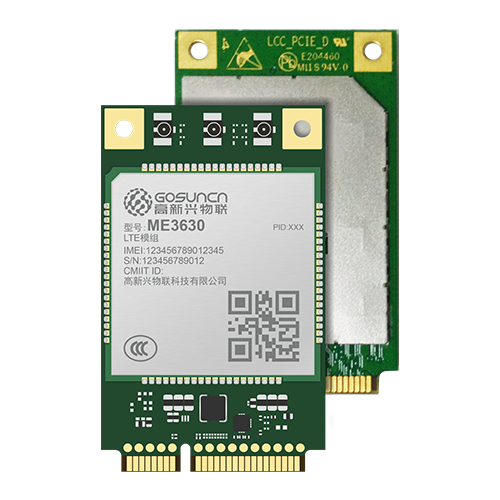

ME3630-W Mini PCIe系列无线通讯模组是LTECat.4七模全网通封装超薄小尺寸LTE模组。在LTE制式下，该模组可以提供最大50Mbps上行速率和150Mbps下行速率，并支持回退到3G或2G网络。该模组支持分集接收，分集接收是终端产品支持双天线以提高通讯质量和通讯可靠性无线连接技术。
该模组支持多种网络协议（PAP、CHAP、PPP）和多种功能GNSS, Remote wakeup, SMS、GNSS、支持FoTA空中升级。这些协议和功能可以让它用在很多物联网应用场景里。该模组支持宽温工作，产品可广泛应用于智能抄表、安防信息采集、工业路由器、各种车载产品上比如：车载跟踪，车载通讯，车载监控等M2M领域。
* Pin-to-Pin with PCIE
* Dimensions: 51mm ×31mm×4.75mm
* Weight: About 10.0g
* BD/GLONASS/GPS
* Frequency Band:
LTE FDD/LTE TDD/WCDMA/TD-SCDMA/GSM/CDMA EVDO/CDMA 1x* C2A/C2C/C2B/C3C/C3B
1.LTE FDD: B1, B3, B5,B8
2.LTE TDD: B38, B39, B40, B41
3.WCDMA: B1, B5, B8
4.TD SCDMA: B34, B39
5.GSM: B3, B8
6.CDMA EVDO/ 1x: BC0
* E1C/E2C
1.LTE FDD: B1, B3, B7, B8, B20
2.WCDMA: B1, B8
3.GSM: B3, B8
* J2A/J2AS
1.LTE FDD: B1, B3, B5, B7, B8, B18, B19, B21
2.WCDMA: B1, B5, B6, B8, B19
* F1A
1. LTE TDD: B45/61:1.4GHz B59/62:1.8GHz
* A1C
1. GSM:B2, B3, B5, B8
2. UMTS:B1, B2, B5, B8
3. LTE FDD:B1, B2, B3, B5, B7, B8, B28
4. LTE TDD:B40
* Note: OpenLinux solution are embedded in C2A version
* Transmit Power:
LTE: 23 ±2.7dBm (Power Class 3) WCDMA : 24 +1/-3dBm (Power Class 3) TD-SCDMA : 24 +1/-3dBm GSM900 : 33±2dBm (Power Class 4) GSM1800: 30±2dBm (Power Class 1) CDMA:24 ±1dBm @ All up bits* Receiving sensitivity::
Rx Diversity* Power Supply:
3.0V --4.0V(3.3V /3.8V is recommended)* Operation temperature: -30°C to +75°C
Extreme Operating temperature: -40°C to +85°C* Storage temperature: -40°C to +85°C
* -40℃ to +85℃
* LTE FDD:
Uplink 50Mbps / Downlink 150 Mbps* TD-LTE:
Uplink30Mbps / Downlink 112Mbps* WCDMA:
Uplink 5.76Mbps / Downlink 42Mbps* TD-SCDMA:
Uplink 2.2Mbps / Downlink 2.8Mbps* EDGE (Multi-slot Class 12):
Uplink236.8 kbps/Downlink: 236.8 kbps* GPRS (Multi-slot Class 10):
Uplink85.6 kbps/Downlink85.6 kbps* CDMA2000 EVDO:
Uplink 1.8Mbps / Downlink 3.1Mbps* CDMA2000 1X:
Uplink 153.6 kbps / Downlink 153.6 kbps* Support Text and PDU mode
* Point to point MO and MT
* SMS Status Report
* SMS centre address setting
* Management of SMS
* About 3mA standby current
* USB 2.0
* UART
* SIM interface (1.8/3.0V)
* Antenna (RF PAD for Primary, Diversity and GPS)
* LED indication
* LCC 80Pi
* Reset & Power-on
* WAKE-IN & WAKE-OUT
* USB 2.0
* Support embedded TCP & UDP &FTP &HTTP protocols
* Support protocols PAP and CHAP used for PPP connection
* USB Selective Suspend & Remote wakeup
* RAS /ECM/NDIS
* Control Via AT Commands according to 3GPP TS27.005, 27.007 and ZTEWelinkextended AT commands
* Drivers:
Windows XP, Vista, 7 , 8, Win CE,Windows Mobile Linux Android* Diag-log Tool
* Firmware update Tool
