Product Description
SIM7090 is the LPWA module which supports wireless communication modes of Cat-M/Cat-NB.

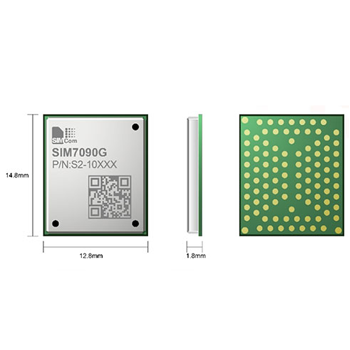

SIM7090 adopts LGA form factor and has a compact size of 14.8mm*12.8mm which makes it ideal for compact products design.
SIM7090 has powerful expansibility with abundant interfaces including UART, GPIO, PCM, SPI, I2C etc. The SIM7090 is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.
Version : 201911
|
General Features
Frequency Bands
B1/B2/B3/B4/B5/B8/B12/B13/B14/ B18/B19/B20/B25/B26/B27/B28/ B66/B85
Cat-NB B1/B2/B3/B4/B5/B8/B12/B13/B18/ B19/B20/B25/B26/B28/B66/B71/B85
LTE RF Power Class
Class 5 (Typ. 21dbm)
Supply voltage range
2.7V-4.8V
Control Via AT Commands
Operation temperature
-40℃ ~ +85℃
Dimensions
14.8*12.8*1.8mm
Weight
0.8g±0.2
Data
Cat-M
Uplink 1119Kbps
Downlink 589Kbps
Cat-NB
Uplink 158.5Kbps
Downlink 127Kbps
Power Consumption
PSM 3.2 uA
Sleep 0.8 mA
Idle 10 mA
Other Features
TCP/UDP/HTTP/HTTPS/FTP
TLS/DTLS/PING/LWM2M/COAP/MQTT
AYLA Cloud
Firmware update via USB
FOTA
EAT
Interfaces
UART
SIM (1.8V)
PCM/I2S
SPI
I2C
GPIO
ADC
USB
Certifications(plan)
FCC/IC/CE/RCM/JATE/TELEC
AT&T/Verizon*/T-Mobile/GCF/PTCRB
RoHS/REACH
|
