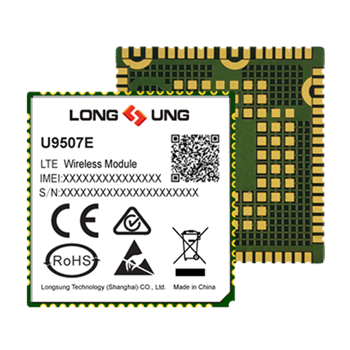

U9507E is a new generation of Longsung LTE wireless module, rich of Internet protocols, and standard interfaces and abundant functionalities.It can be designed in many kinds of applications which can work on LTE-FDD/LTE-TDD/UMTS/GSM/GPS/ GLONASS(Optional) network.
On LTE network, U9507E enables connect to the Internet at DL data speed up to 150Mbps and UL data speed up to 50Mbps, in the area where LTE service are not available, U9507E still enables reliable and secure data connect over 3G(UMTS) or 2G(GSM) network.
U9507E provides SMS, MMS, Phonebook functions as well as high speed access, and also audio function. It can be designed in many kinds of applications. Such as Data card, Video monitor, Tablet, Electric-book, MID, Vehicle equipment, etc.
产品特性：
General features:
• EDGE multi-slot class 33
• GPRS multi-slot class 33
• Compliant to GSM phase 2/2+
• Output power:
- Class 3 (0.25W) for LTE/UMTS - Class 4 (2 W) for GSM 900 - Class 1 (1 W) for GSM 1800
• Control via AT commands: (3GPP TS27.005/TS27.007, 3GPP2 )
• Supply voltage range: 3.3V- 4.2V
• Low Power consumption: - Sleep mode: 3mA - Power down: 16 μA
• Dimensions: 31.0×30.0×2.4mm
• Operation Temperature :-40°C to +85°C
•MSL：3
Band Configuration:
U9507E:
• LTE-FDD Band 1/3/5/7/8/20/28
• LTE-TDD Band 38/40
• UMTS Band 1/5/8
• GSM Band 3/8
Specifications for data:
• Support Release 11 Category 4
• LTE-FDD up to 150 Mbps DL,50 Mbps UL
• LTE-TDD up to 130 Mbps DL,35 Mbps UL
• DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
• EDGE class 33: 296Kbps DL,236.8Kbps UL
• GPRS class 33: 107kbps DL,85.6kbps UL
• CSD up to 14.4 kbps
• Non transparent mode
• PBCCH support
• PPP-stack
• Coding schemes CS 1,2,3,4
• FOTA
• TCP/IP
• NDIS
GNSS:
• GPS frequency: 1575.42MHz
• At least support 44 channels
• Sensitivity: - Acquisition: -158dBm - Tracking: -162dBm
• TTFF: - Cold Start: 28s - Warm Start: 18s - Hot Start: 1s
Specifications for SMS:
• Point-to-point MO and MT
• SMS cell broadcast
• Text and PDU mode
Protocols:
TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/SMTP*/ SMTPS*/ MMS/ FTPS*/ NTP/PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT*
Approvals:
• RoHS / CE / GCF / RCM / NCC
Interfaces:
• RF connector
• PCI Express® Mini Card Interface
- Power supply - USB 2.0 high speed - UICC/SIM/UIM card interface 3 V, 1.8 V - UART - Analog Audio - PCM
• Antenna connector
