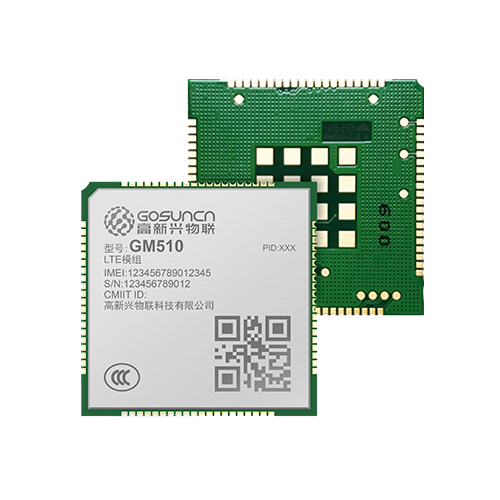

GM510系列无线通讯模组是基于LTE制式的移动网络通讯模组，支持LTE-FDD及LTE-TDD制式并支持CAT4。在LTE制式下，该模组可以提供最大50Mbps上行速率和150Mbps下行速率。该模组支持多种网络协议（PAP、CHAP、PPP）和多种功能（FOTA, Remote wakeup等），并能提供USB，UART，SDIO，I2C，SPI等硬件接口。该模组支持宽温工作，可广泛应用于移动宽带，公网对讲，无线支付，车载，安防监控、智能物流、智慧工业等多种物联网应用场景。
* LCC Form Factor (80 pins)
* Pin-to-Pin with ME3630
* Dimensions: 30mm × 30mm× 2.3mm
* Frequency Band :
-LTE FDD/LTE TDD
-WCDMA*
-GSM *
* Transmit Power:
--LTE: 23 ±2.7dBm (Power Class 3)
--WCDMA: 24 +1/-3dBm (Power Class 3)
--GSM900 : 33±2dBm (Power Class 4)
--GSM1800: 30±2dBm (Power Class 1)
* Receiving sensitivity:
--Rx Diversity *
* Power Supply :
--3.4V -- 4.2V(3.8V is recommended)
* Operation temperature: -30°C to +75°C
--Extreme Operating temperature: -40°C to +85°C
* Storage temperature: -40°C to +85°C
* Humidity: 5%~ 95%
* C1A
1.LTE FDD: B1, B3, B5, B8
2.LTE TDD: B34, B38, B39, B40, B41
3.WCDMA: B1, B8
* C1B
1.LTE FDD: B1, B3, B5, B8
2.WCDMA: B1, B8
* C1C
1.LTE FDD: B1, B3, B5
* C1D
1. LTE FDD: B1, B3, B5, B8
2. LTE TDD: B34, B38, B39, B40, B41
3. WCDMA: B1, B8
* C1E
1. LTE FDD: B1, B3, B5, B8
2. LTE TDD: B34, B38, B39, B40, B41
3. WCDMA: B1, B8
4. GSM: B3, B8
* C2M
1. LTE FDD: B3, B8
2. LTE TDD: B34, B38, B39, B40, B41
3. GSM: B3, B8
* LTE FDD
-Uplink 50Mbps / Downlink 150 Mbps
* LTE FDD
--Uplink30Mbps / Downlink 112Mbps
* WCDMA
--Uplink30Mbps / Downlink 112Mbps
* EDGE (Multi-slot Class 12)
--Uplink 236.8 kbps / Downlink 236.8 kbps
* GPRS (Multi-slot Class 10)
* USB 2.0 High speed (480 Mbps)
* UART1(4-wires)
* UART2 for debug (2-wires)
* SIM interface (1.8/3.0V)
* SPI
* I2C
* Antenna (RF PAD for Primary, Diversity)
* LED indication
* Reset & Power-on
* WAKEUP-IN & WAKEUP-OUT
* Support embedded TCP & UDP protocols
* Support protocols PAP and CHAP used for PPP connection
* USB Selective Suspend & Remote wakeup
* RAS /ECM/RNDIS
* Control Via AT Commands according to 3GPP TS27.005, 27.007 and GOSUNCN extended AT commands
* Drivers
--Windows XP, Vista, 7 , 8, 10
--Linux
--Android
* Diag-log Tool
* Firmware update Tool
